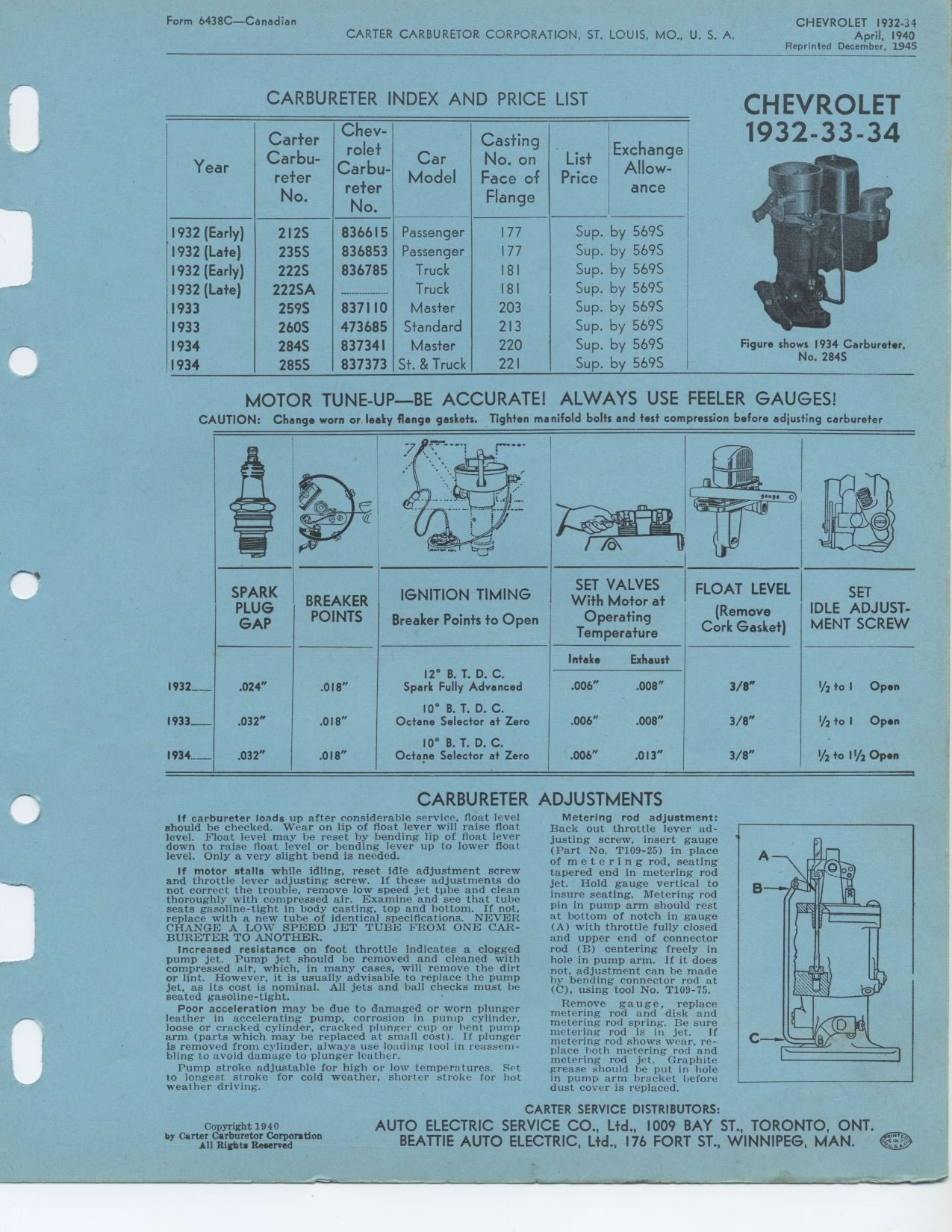

CARBURETER INDEX AND PRICE LIST CHEVROLET
Year Carter Chev- Car Casting 1932-33-34
Carbu- rolet No. on List Exchange
refer Carbu- Model Face of Price ance
Ceter Flange
No. ,{•:
1932 (Early) 212S 836615 Passenger 177 Sup. by 569S
1932 (Late) 235S 836853 Passenger 177 Sup. by 569S
1932 (Early) 222S 836785 Truck 181 Sup. by 569S
1932 (Late) 222SA .... ......... Truck 181 Sup. by 569S tt
1933 259S 8371 10 Master 203 Sup. by 569S
1933 260S 473685 Standard 213 Sup. by 569S
1934 284S 837341 Master 220 Sup. by 569S Figure shows 1934 Carburetor,
1934 285S 837373 St. & Truck 221 Sup. by 5695 No. 284S
MOTOR TUNE-UP—BE ACCURATE! ALWAYS USE FEELER GAUGES!
CAUTION: Change worn or leaky flange gaskets. Tighten manifold bolts and test
compression before adjusting carbureter
BREAKER POINTS
SPARK PLUG GAP
IGNITION TIMING Breaker Points to Open
SET VALVES With Motor at
Operating Temperature
FLOAT LEVEL
(Remove
Cork Gasket)
SET
IDLE ADJUST-
MENT SCREW
Intake Exhaust
.024" .032" .032"
.018" .018" .018"
3/8" 3/8" 3/8"
12° B. T. D. C.
Spark Fully Advanced
10° B. T. D. C.
Octane Selector at Zero
10 ° B. T. D. C.
Octane Selector at Zero
.006" .008"
.006" .008"
.006" .013"
I/2 to I Open I/2 to I Open 1/2 to 11/2 Open
CARBURETER ADJUSTMENTS
If carbureter loads up after considerable service, float level should be checked.
Wear on lip of float lever will raise float level. Float level may be reset by
bending lip of float lever down to raise float level or bending lever up to lower
float level. Only a very slight bend is needed.
If motor stalls while idling, reset idle adjustment screw and throttle lever
adjusting screw. If these adjustments do not correct the trouble, remove low
speed jet tpbe and clean thoroughly with compressed air. Examine and see that
tube seats gasoline-tight in body casting, top and bottom. If not, replace with
a new tube of identical specifications. NEVER CHANGE A LOW SPEED JET TUBE FROM
ONE CARBURETER TO ANOTHER.
Increased resistance on foot throttle indicates a clogged pump jet. Pump jet
should be removed and cleaned with compressed air, which, in many cases, will
remove the dirt or lint. However, it is usually advisable to replace the pump
jet, as its cost is nominal. All jets and ball checks must be seated gasoline-tight.
Poor acceleration may be due to damaged or worn plunger leather in accelerating
pump, corrosion in pump cylinder, loose or cracked cylinder, cracked plunger
cup or bent pump arm (parts which may be replaced at small cost). If plunger
is removed from cylinder, always use loading tool in reassembling to avoid damage
to plunger leather.
Pump stroke adjustable for high or low temperatures. Set to longest stroke for
cold weather, shorter stroke for hot weather driving.
Metering rod adjustment: Back out throttle lever adjusting screw, insert gauge
(Part No. T109-25) in place of metering rod, seating tapered end in metering
rod jet. Hold gauge vertical to insure seating. Metering rod pin in pump arm
should rest at bottom of notch in gauge (A) with throttle fully closed and upper
end of connector rod (B) centering freely in hole in pump arm. If it does not,
adjustment can be made by bending connector rod at (C), using tool No. T109-75.
Remove gauge, replace metering rod and disk and metering rod spring. Be sure
metering rod is in jet. If metering rod shows wear, re-place both metering rod
and metering rod jet. Graphite grease should be put in hole in pump arm bracket
before dust cover is replaced.
